About

The Clad-Man is the ideal aid for lifting and installing industrial cladding panels of up to 14 metres in length.

Featuring a maximum lifting capacity of up to 800kg, this versatile cladding vacuum lifter can easily be transported to and from the site thanks to its compact size.

The Clad-Man is highly adaptable to its working environment and can quickly and easily install horizontal wall, vertical wall, and roofing cladding panels.

Roofing and cladding contractors can also seamlessly move from horizontal to vertical during operation with thanks to its 90° lockable tilting function.

Features

› Ref: VCL17

› 110/240v intelligent charger system

› Audio-visual low vacuum alert

› Securing straps supplied as standard

› This machine is also safe for use in the rain, helping to reduce downtime on site.

› Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s

Clad-Man - VCL17

Capacity: Capacity: 600-800kg

Ref: Ref: VCL17

Main Features

600-800kg capacity
Dual circuit vacuum system with vacuum gauge, reserve tank and non-return valve for each circuit
On-board controls (including suction release).
90° manual tilt

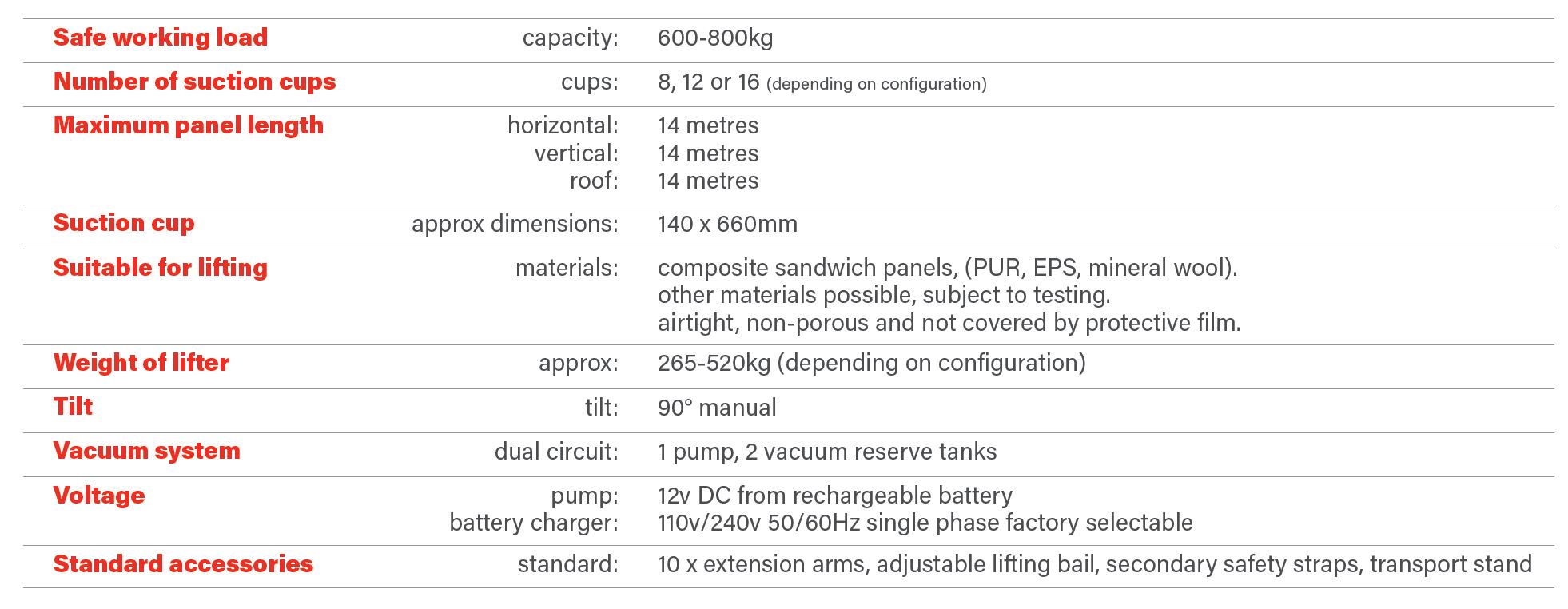

Technical Specifications

About

Features

See This Product In Use

Technical Specifications

Technical Table

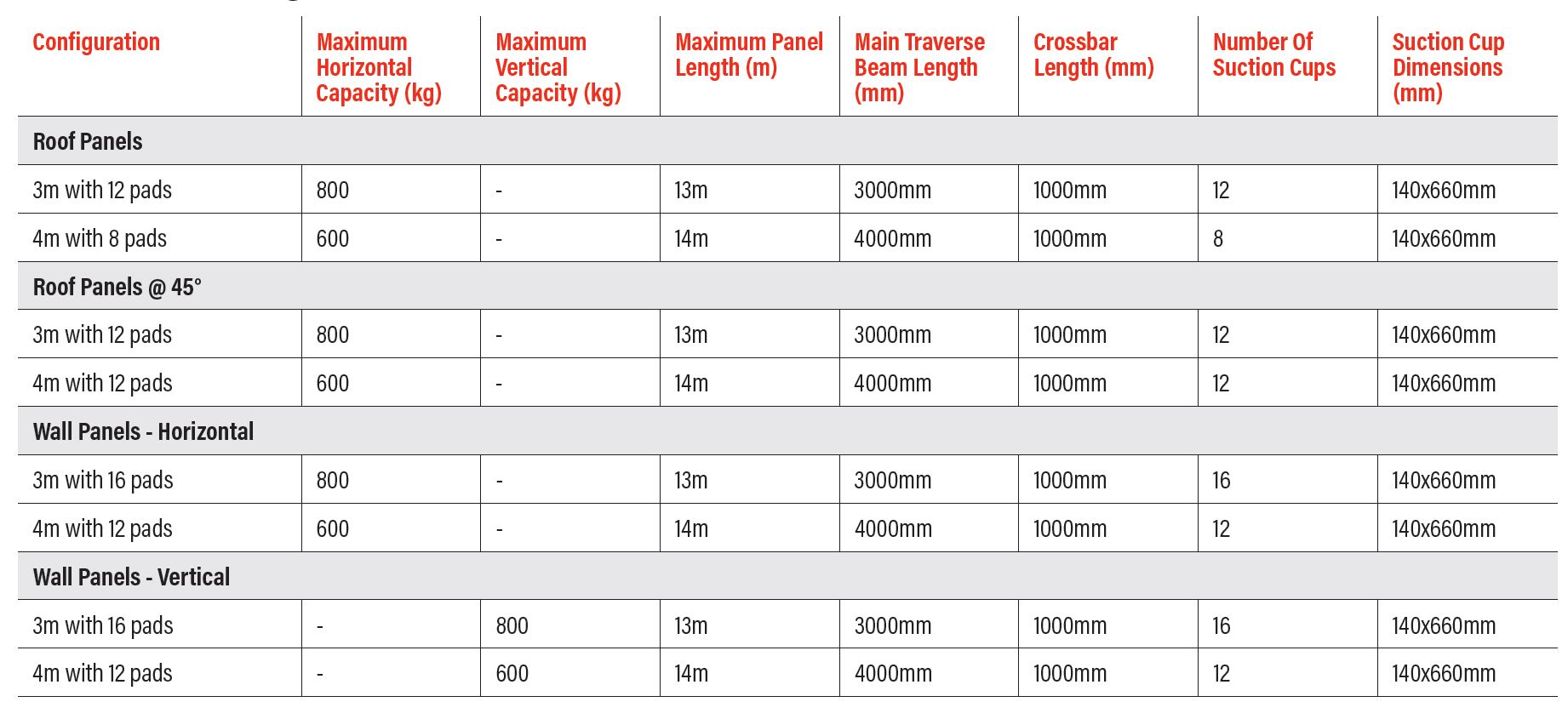

Clad-Man Configurations
